PRICING
Price is flexible to meet the actual market situations. We
will offer competitive prices to the customers with high quality
products, helping customers to save cost with low consumption
rate in the industry of steel making.
PRODUCTS
The top grade products are carefully selected for precision
machining at our factory to produce our comprehensive range
of quality electrodes. Generally electrodes are made in conformity
with China's standards, but electrodes made in FC can be machined
to cater for customer's special requirements. We shall guarantee
all that what we manufactured to be in best performance for
end users and will meet the individual demand of customers.
SERVICE
Customer's requirement is the guidance for our operation.
Our expert team is ready to provide technical support, prompt
and efficient help to all customers at all times both in administration,
production, sales, delivery and etc.
Product specification
graphite electrodes Length , diameter and tolerance
|
Nominal diameters
|
Actual diameters
|
Actual lengthes
|
|
mm
|
in
|
Max
|
Min
|
Rough spot
|
Length
|
Tolerance
|
Shoter
sizes
|
|
200
|
8
|
204
|
201
|
198
|
1600
1800 |
±100
|
–275
|
|
250
|
10
|
256
|
251
|
248
|
|
300
|
12
|
307
|
302
|
299
|
|
350
|
14
|
357
|
352
|
347
|
|
400
|
16
|
409
|
403
|
400
|
2000\2200
2400 |
|
450
|
18
|
460
|
454
|
451
|
|
500
|
20
|
511
|
505
|
502
|

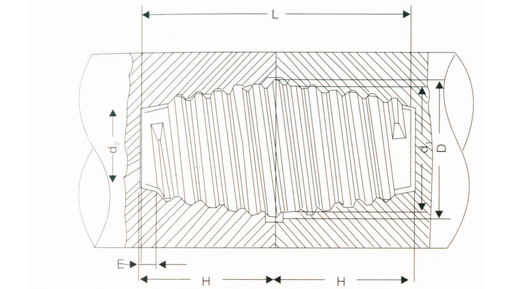

Dimensions of threads and sockets of taper nipples
|
Diam of electrode
|
Sizes of nipple(mm)
|
Sizes of socket(mm)
|
Thread
|
|
mm
|
in
|
D
|
L
|
a2
|
1
|
a1
|
H
|
mm
|
|
100
150
200
250
300
350
400
450
500
|
4
6
8
10
12
14
16
18
20
|
69.85
92.08
122.24
152.40
177.80
203.20
222.25
241.30
269.88
|
-0.5
|
101.6
139.7
177.8
190.5
215.9
254.0
355.6
355.6
457.20
|
0
-1
|
40.3
56.2
80.0
108.0
129.2
148.2
150
169.42
181.08
|
0
-5.0
|
<7
|
63.53
85.76
115.92
146.08
171.48
196.88
215.93
234.98
263.56
|
+0.5
0
|
53.80
72.85
94.90
101.30
114.00
133.00
183.8
183.8
234.60
|
+7
0
|
6.35
|
|
250
300
350
ø400
ø450
ø500
|
10
12
14
16
18
20
|
155.57
177.16
215.90
241.30
273.05
298.45
|
-0.5
|
220.00
270.09
204.8
338.7
355.6
372.6
|
0
-1
|
103.8
116.9
150.0
169.8
198.7
221.3
|
0
-5.0
|
<10
|
147.14
168.73
207.47
232.87
264.62
290.02
|
+0.5
0
|
116.00
141.50
158.40
175.30
183.80
192.20
|
+7
0
|
8.47
|

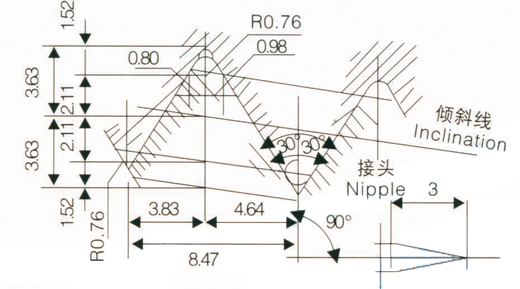

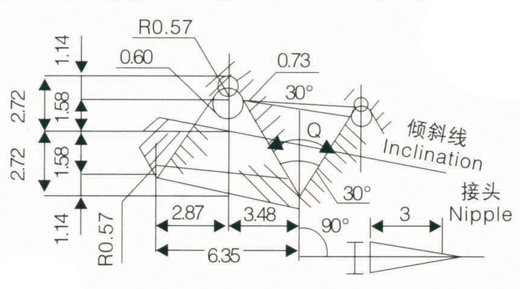

Thread details
Package Dimensions For Export Graphite
Electrodes
Electrodes are packed in wooden crates, and nipples in wooden
cases; or packed pre-set as customer's requirements; inner
plastic to prevent water and dust, and braced strongly with
steel strip to be suitable for land and sea transportation.
Package dimensions for graphite electrodes:
|
Nominal
Diameter
|
Package for electrodes
|
Pre-set package
|
|
mm
|
inch
|
pcs/crate
|
approx.
N.W.(kg)
|
Measurement
(mm)
|
approx.
N.W.(kg)
|
Measurement(mm)
|
|
150×1600
|
6×60
|
13
|
650
|
1700×1140×390
|
663
|
1700×1140×390
|
|
200×1600
200×1700
|
|
|
|
1700×1070×480
1800×1070×480
|
|
1800×1070×480
1900×1070×480
|
|
250×1700
250×1800
|
10×67
10×72
|
3
3
|
405
429
|
1800×820×350
1900×820×350
|
436
445
|
1910×820×350
2010×820×350
|
|
300×1850
|
12×72
|
3
|
615
|
1950×970×400
|
640
|
2100×970×400
|
|
350×1850
|
14×72
|
3
|
855
|
1950×1120×450
|
897
|
2100×1120×450
|
|
400×1850
400×2100
|
16×72
16×84
|
3
3
|
1104
1260
|
1950×1280×500
2200×1280×500
|
1161
1317
|
2130×1280×500
2380×1280×500
|
|
450×1850
450×2100
|
18×72
18×84
|
2
2
|
924
1056
|
1950×970×550
2200×970×550
|
980
1112
|
2130×970×550
2380×970×550
|
|
500×1850
500×2100
|
20×72
20×84
|
2
2
|
1143
1306
|
1950×1070×600
2200×1070×600
|
1210
1372
|
2150×1070×600
2390×1070×600
|
|
